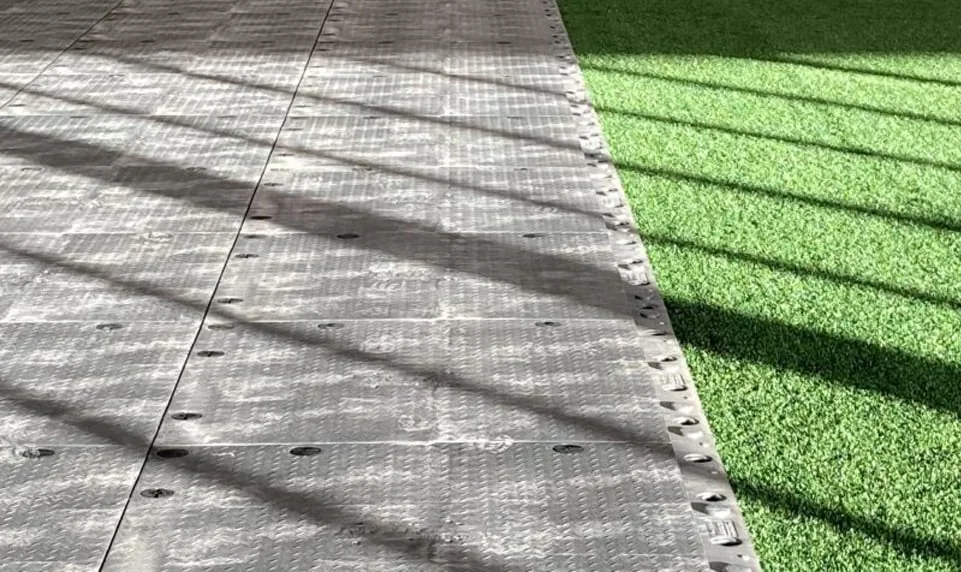

Engineered for high-performance ground protection, Matrax LD is a heavy-duty modular flooring system designed to support large-scale events across turf, grass, and sensitive surfaces. Its 4 ft x 4 ft panel design provides efficient coverage while distributing weight evenly to reduce ground impact in high-traffic and equipment-heavy environments.

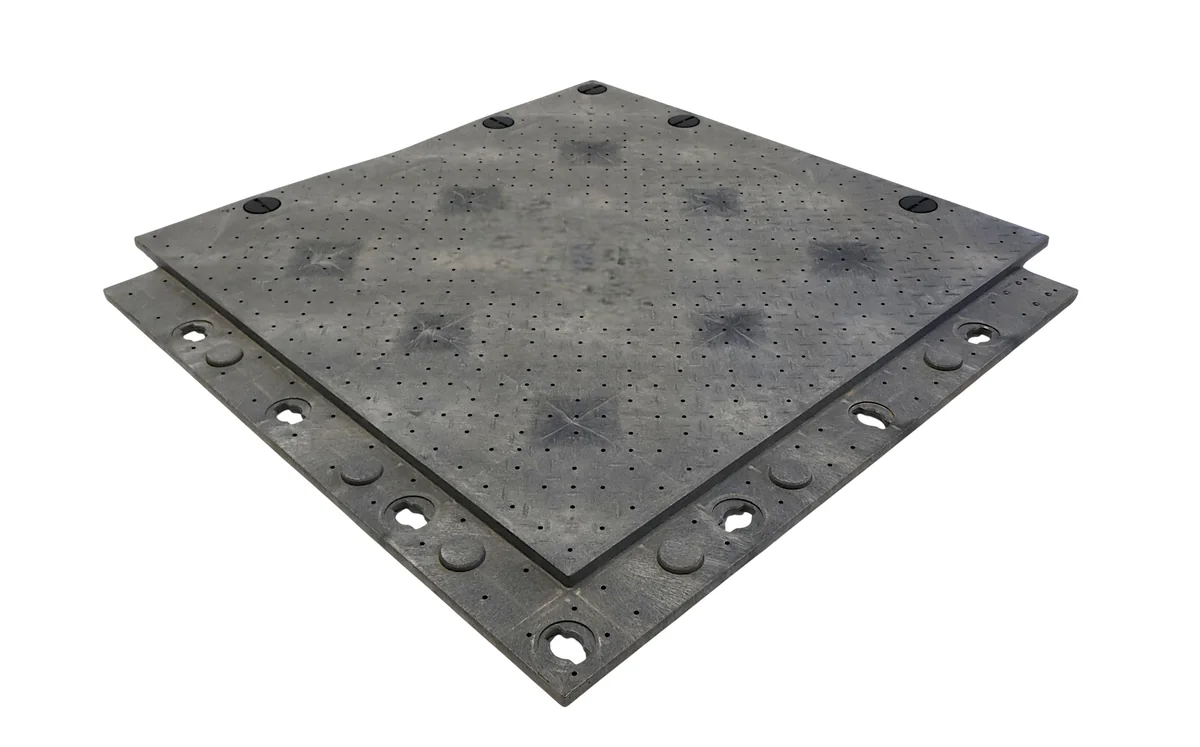

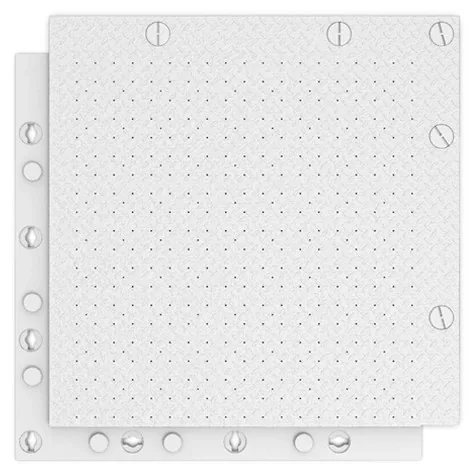

Each panel is constructed from virgin HDPE plastic and features a diamond-textured surface for traction, along with an open-back design and aeration holes to maintain ground health. Reinforced structural ribbing and overlapping over/under flanges improve load distribution and create a smooth, continuous surface. The preinstalled cam-lock connection system ensures secure panel integration with no loose parts, allowing for efficient installation and removal.

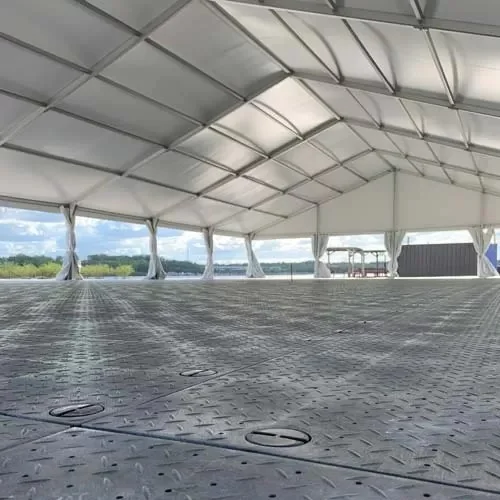

Designed to meet ADA compliance requirements, Matrax LD is suitable for stadium flooring, outdoor events, and temporary infrastructure where durability and surface protection are critical.

DIMENSIONS:
Panel: 4 ft L x 4 ft W x 1.5 in H

NOTES:
• Weight Load: 225 psi (depending on subsurface conditions)
• Material: Virgin HDPE plastic
• Panel Weight: 30.5 lbs
• Usable Panel Area: 43.625″ x 43.625″
• Temperature Range: -4°F to 113°F
• Burn Rating: UL 94-HB
• Diamond surface texture with aeration holes
• Overlapping flange system for load distribution and smooth transitions
• Preinstalled cam-lock connection system (no loose parts)
• ADA compliant
• Pricing is per square foot
